Aikexin 120m HDMI Extender Over TCP/IP CAT5e/6 Rj45 LAN Ethernet Cable Support 1080P with IR 120m HDMI Transmitter Receiver

Description :
The extender provides extension of HDMI signals long distances over a single CAT6 cable,it supports high resolution up to 1080P, KVM and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Aikexin 120m HDMI Extender Over TCP/IP CAT5e/6 Rj45 LAN Ethernet Cable Support 1080P with IR 120m HDMI Transmitter Receiver
Feature:
Transmits HDMI video and audio signal up to 100m/120m over single CAT5e/6 cable;
Support video resolution up to 1920*[email protected];
Support keyboard and mouse(HID signal) transmission;
Support the transmitter has one local HDMI output(Loop out function);
Support 802.3 Ethernet standard;
Low latency <100ms
Support unidirectional IR transmission,you can control STB or Blue-Ray DVD at receiving site by
remote control;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play.
Aikexin 120m HDMI Extender Over TCP/IP CAT5e/6 Rj45 LAN Ethernet Cable Support 1080P with IR 120m HDMI Transmitter Receiver
Specification:
HDMI Version-----------------------------------------------------------------HDMI1.3a
Transmitter Input Ports ---------------------------------HDMIx1(AF),USB(BF)x1
Transmitter Output Ports ---------------------HDMIx1(AF),Cat5e/6x1,IR TXx1
Receiver Input Ports--------------------------------------------Cat5e/6x1,IR RXx1
Receiver Output Ports-----------------------------------HDMIx1(AF),USB(AF)x2
Frequency Bandwidth---------------------------------------2.25Gbps (single link)
Input/Output Resolutions------------------------------480i/p,576p,720p,1080i/p
Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz
IR remote control----------------------------------------------------38 KHz;NEC
ESD Protection Human Body Model ---------± 8kV (air-gap discharge)
                                                                      ± 4kV (contact discharge)
Operating Temperature--------------------------------0˚C ~ 70˚C / 32˚F ~ 104˚F
Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity----------------------------------20~90% RH (non-condensing)
Dimensions (mm)---------------------------------------------------100x102x25
Aikexin 120m HDMI Extender Over TCP/IP CAT5e/6 Rj45 LAN Ethernet Cable Support 1080P with IR 120m HDMI Transmitter Receiver

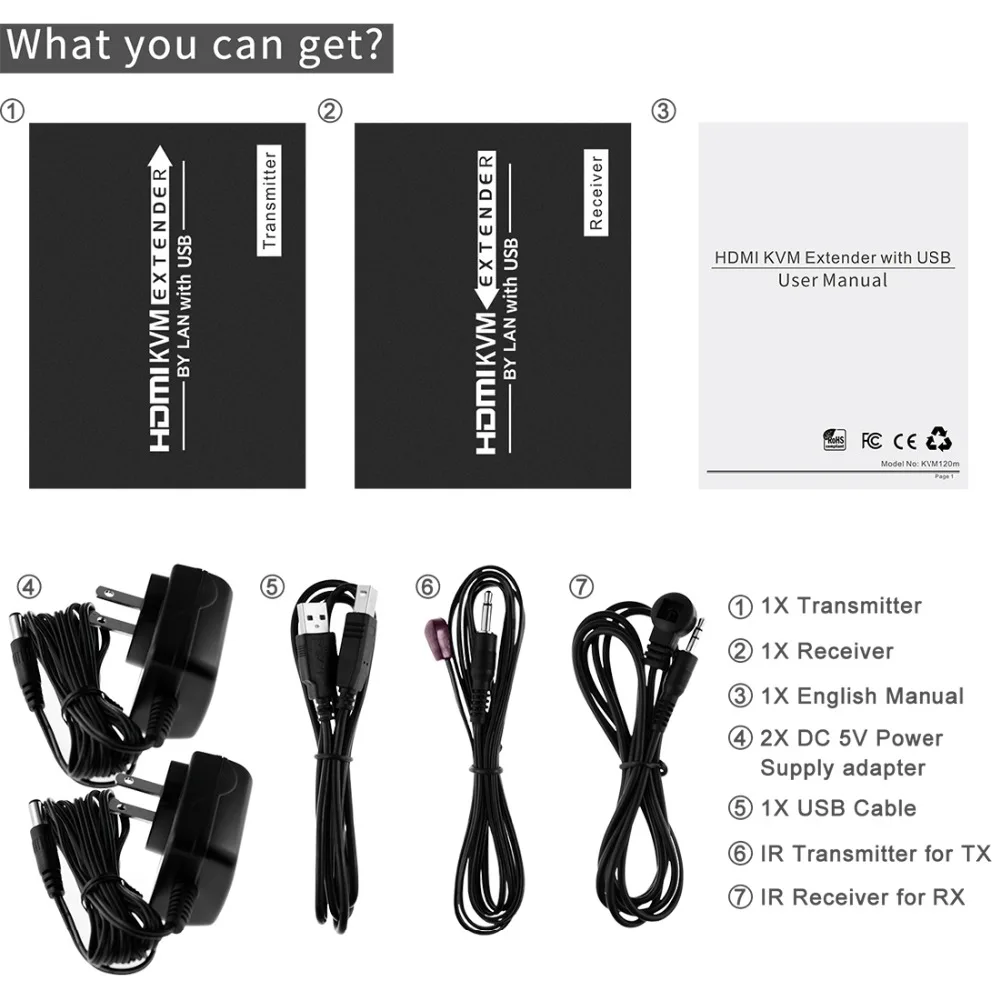

Packing List  :
HDMI Extender Transmitter -------------------------------------------1PCS
HDMI Extender Receiver ---------------------------------------------- 1PCS
IR Transmitter -----------------------------------------------------------1PCS
IR Receiver ---------------------------------------------------------------1PCS
DC Power Supply adapter ----------------------------------------- 2PCS
USB Printer Data Cable--------------------------------------------------1PCS
Operation Manual --------------------------------------------------------1PCS
KVM120 (2)KVM120 (3)KVM120 (4)KVM120 (5)KVM120 (6)
