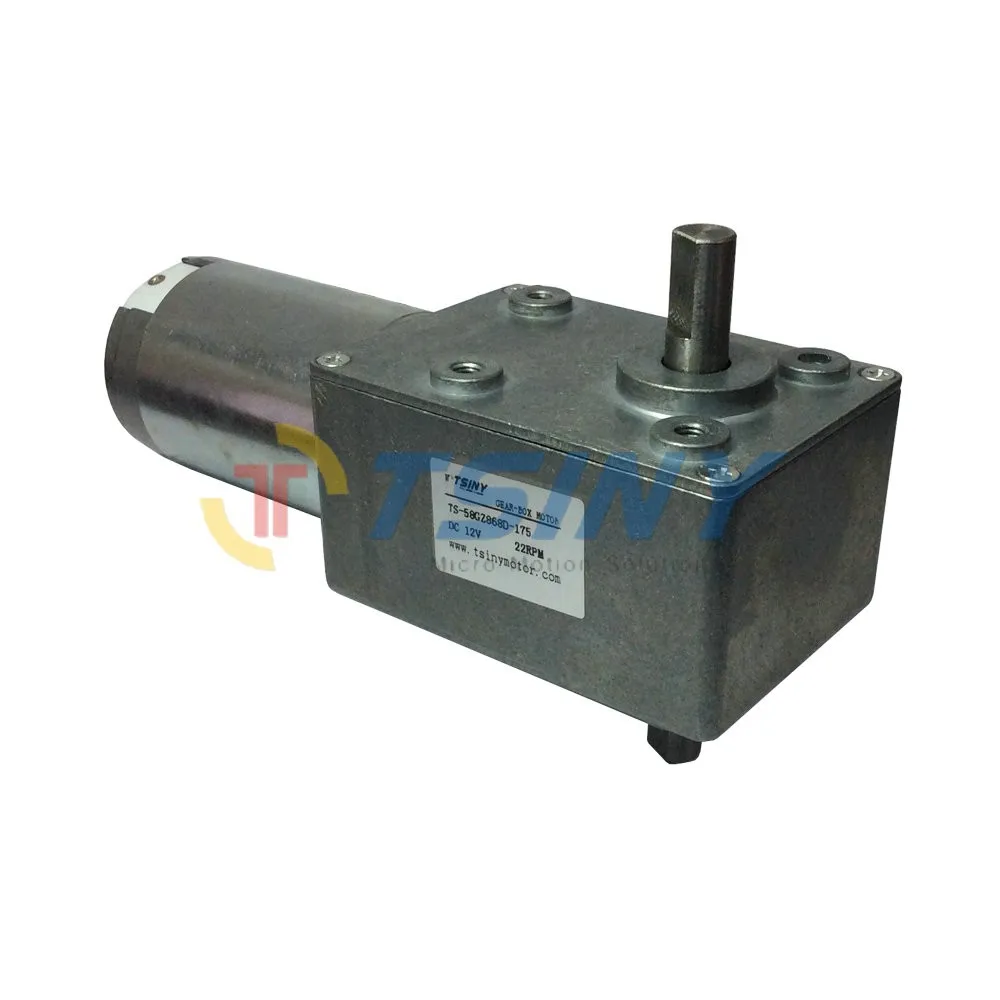

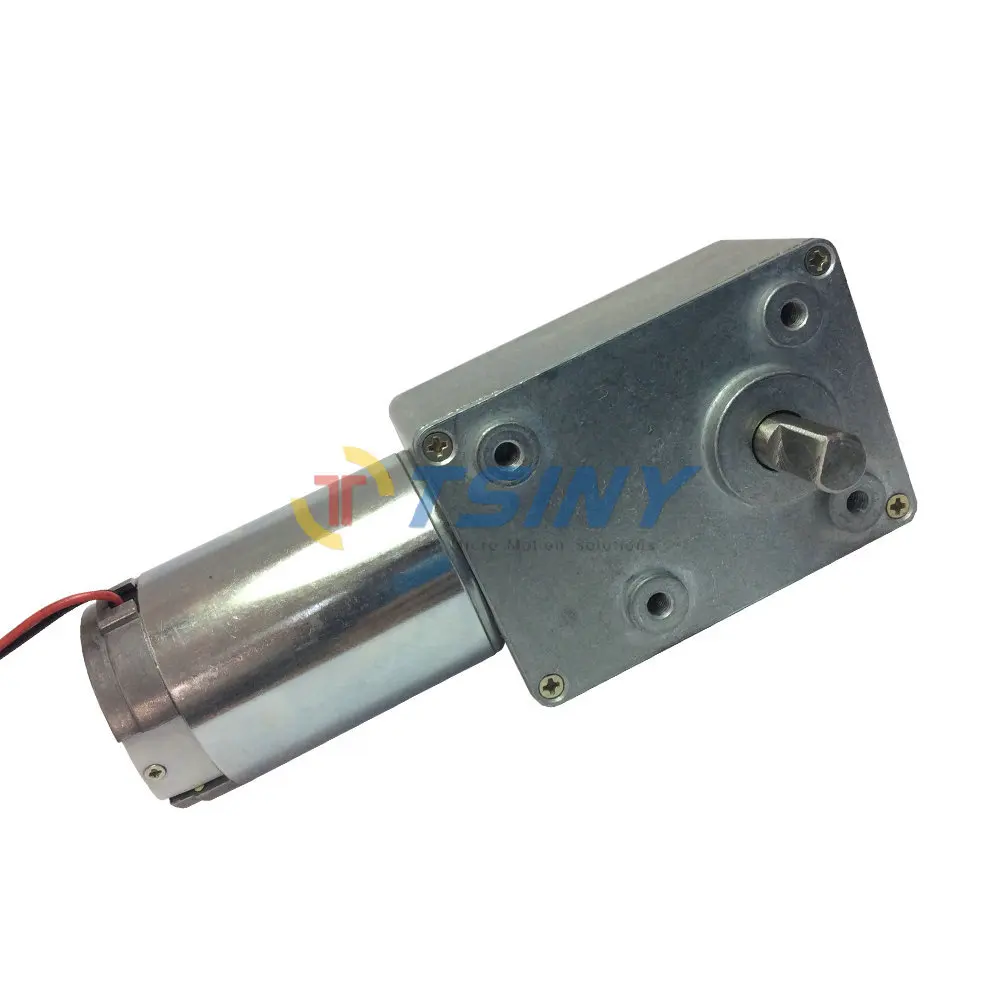

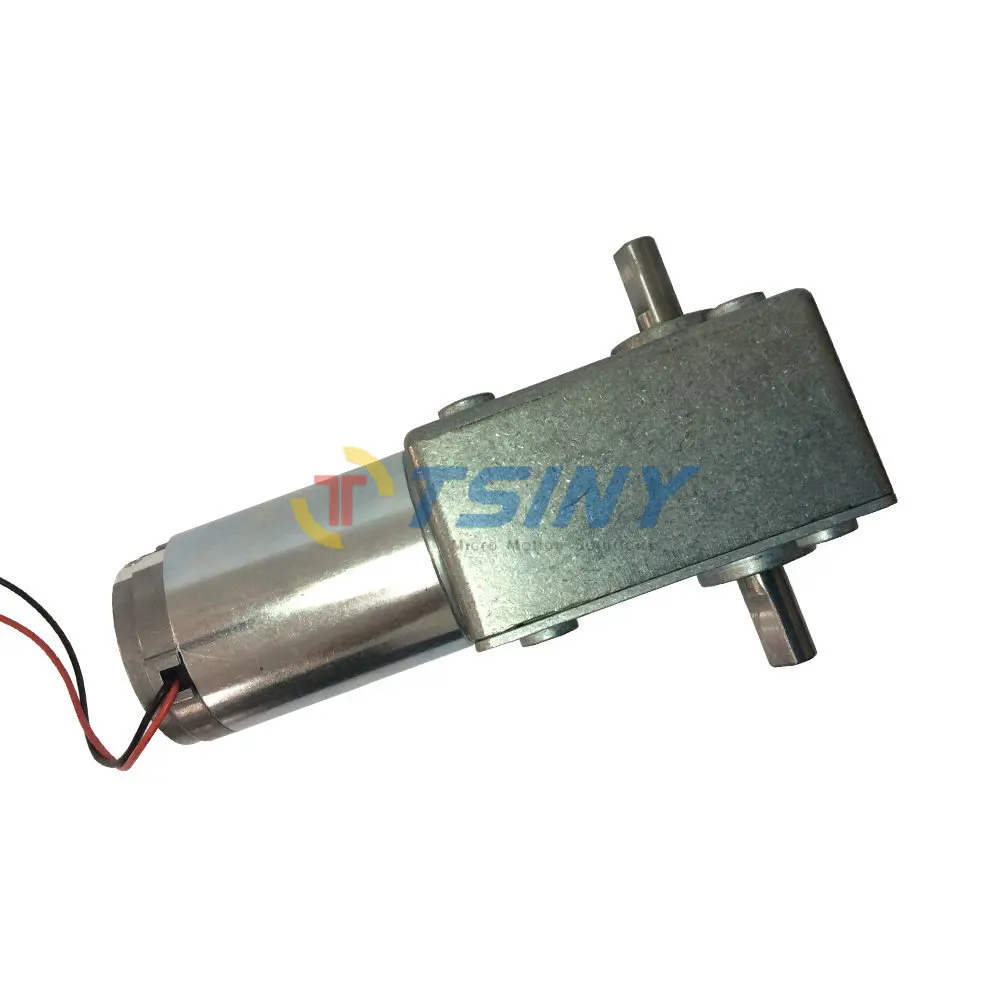

DC Gear Motor 12V 22rpm Low Speed Double Shaft Diameter 10mm Electric Worm Reducer Motor for Engine Robot Model

DC Gear Motor 12V 22rpm Low Speed Double Shaft Diameter 10mm Electric Worm Reducer Motor for Engine Robot Model
  • Продавецazartomania.info
  • Список ценUS $52.33piece
  • Продажная ценаUS $52.33piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,2 (597)

Oписание продукта



Notice:
1. After order, please keep your E-mail can be contacted.
Shipping Tips:
1. We have almost all product in stock, we will send out in 24 hours.
2. Normal Express: We----Agent----DHL/FedEx----Customer. Package to DHL/FedEx total cost 3 days. Tracking number will come out in 3 days.
    If you need directly send to DHL/FedEx, it will save the 3 days, cost is 5~10 times of Normally.
3. Post Air Mail sometimes will be delay, pls don\'t leave a 1~3 stars feedback due to this.
    If shipping delay, pls contact us extend confirm time before dispute. And keep in touch. It\'s repect to us.
4. If you are in Remote Area of DHL/FEDEX, we reserve the right charge for Remote Surcharge.

    Customers responsible for customs duty.











which can change shaft rotation direction while the wiring positive and

negative be changed.

It\'s also have addition two characteristics:
1 With self-locking, the output shaft can\'t rotation when switch off, that is

 self-locking.
2 Gearbox output shaft and motor shaft are come to be a rectangle, it\'s

widely used in various of occasions that require special install size.

According to this characteristics, Worm Gear Motors are widely used in

 windows and doors opening and household electrical appliances, Car

model, Boat model, Robot model, DIY engine, Industry application,

house application, home automation ,mini winch and other occasions.



 12V22RPM12V22RPM-1-1

-3-2

5



Dimension:

58D







Technical data:

  • Rated voltage: DC12V
  • No-load speed: 22r/min
  • Rated torque: 35kg.cm
  • Rated Current: 1.69A
  • Reduction ratio:1/175
  • Protection class: IP54
  • Low noise: db<45 (A)
  • Certification: CE





12_0112_0212_0312_0412_0512_0612_07



we accept special design and orders except standard products.

High quality and competitive price from tsinymotor!

Any question pls contact us freely!
